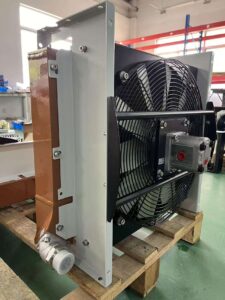

Why CNC Machines Need a Dedicated Hydraulic Oil Cooler

Abstract

CNC machines depend on stable hydraulic pressure to hold micron-level tolerances across multi-hour production cycles. Yet thermal degradation of hydraulic oil remains one of the most underestimated causes of unplanned downtime in precision manufacturing environments. When oil temperature rises beyond its rated operating band, viscosity drops, positional accuracy drifts, seals accelerate toward failure, and servo response becomes erratic — all of which translate directly into scrap rates and lost production hours.

A dedicated hydraulic oil cooler for CNC machines is not an optional accessory. It is a precision thermal management component engineered to maintain oil temperature within a defined operating window, protecting pump efficiency, valve response, and overall system integrity. This guide is written for procurement engineers, equipment buyers, and OEM integration teams who need a structured framework for specifying, selecting, and sourcing the right hydraulic oil cooler — covering heat load calculation, coolant circuit selection, compliance requirements, and total cost of ownership analysis.

1. Why CNC Hydraulic Systems Generate Excess Heat

1.1 Root Causes of Thermal Buildup in CNC Hydraulic Circuits

CNC hydraulic systems generate heat through three primary mechanisms, each compounding the other under continuous production loads. Understanding these heat sources is the first step in selecting a suitable hydraulic oil cooler for CNC machining applications.

Pump efficiency losses are the largest single heat source. Even high-efficiency axial piston pumps operate at 85–92% volumetric efficiency; the remaining energy is dissipated as heat directly into the fluid. In a 15 kW hydraulic power unit running at 80% duty cycle, this alone can generate 1,800–2,500 kcal/h of thermal load.

Throttling valve pressure drops add a second, often overlooked heat source. Every proportional valve, flow control valve, and relief valve in the circuit converts pressure differential into heat. In multi-axis CNC systems with complex valve manifolds, cumulative pressure drop across the control circuit can account for 20–30% of total heat generation.

Continuous cyclic loading prevents natural convective cooling from keeping pace with heat input. Unlike mobile hydraulic equipment that cycles between high-load and idle states, CNC machining centers often sustain near-constant hydraulic demand during spindle clamping, tool change actuation, and axis locking — leaving the reservoir with insufficient dwell time to dissipate heat passively.

The combined result is a thermal load that a standard reservoir and piping arrangement cannot manage without active cooling intervention. Installing a properly specified hydraulic oil cooler helps maintain stable oil temperature and prevents excessive thermal stress on critical hydraulic components.

1.2 Consequences of Uncontrolled Oil Temperature on CNC Performance

The critical threshold for most CNC hydraulic systems is 55°C oil temperature. Beyond this point, consequences cascade rapidly:

Viscosity reduction: ISO VG 46 hydraulic oil loses approximately 40% of its viscosity between 40°C and 70°C, causing internal pump leakage to increase and reducing volumetric efficiency further — a self-reinforcing degradation loop.

Positional accuracy drift: Hydraulic clamping and counterbalance cylinders rely on consistent fluid stiffness. Viscosity drop introduces micro-displacement under load, pushing positioning repeatability outside tolerance bands.

Seal and O-ring degradation: Nitrile and polyurethane seals rated for 60°C continuous service suffer accelerated hardening and shrinkage at elevated temperatures, increasing leak frequency and maintenance intervals.

Servo valve instability: Electrohydraulic servo valves in closed-loop CNC axes are sensitive to fluid viscosity changes. Temperature-induced viscosity drift alters spool dynamics, introducing phase lag and gain variation that destabilizes the control loop.

These failure modes are preventable. A correctly sized hydraulic oil cooler eliminates the root cause by controlling thermal buildup rather than treating performance losses after they occur.

2. Core Technical Parameters for Selecting a CNC Hydraulic Oil Cooler

2.1 Cooling Capacity & Flow Rate Matching

Accurate heat load calculation is the starting point for selecting a CNC hydraulic oil cooler. The standard engineering approach uses the following relationship:

Q (kcal/h) = P (kW) × 860 × (1 − η)

Where P is installed hydraulic power, 860 is the kW-to-kcal/h conversion factor, and η is overall system efficiency (typically 0.75–0.85 for CNC hydraulic circuits). For a 15 kW power unit at 80% efficiency, the required cooling capacity is approximately 2,580 kcal/h. Specify the cooler at 120–130% of this calculated value to provide a thermal safety margin under worst-case ambient conditions.

Flow rate matching is equally critical. The cooler must pass the full system return flow without creating excessive back pressure. For most CNC applications, back pressure at the cooler inlet should remain below 0.3 MPa to avoid seal stress on return-line components. Calculate required flow rate from pump displacement and shaft speed, then verify that the selected cooler’s pressure drop curve at that flow rate stays within this limit.

2.2 Coolant Type, Operating Pressure & Temperature Range

The selection between air-cooled, water-cooled, and independent oil cooling units depends on installation environment, available utilities, and thermal load density.

Operating pressure ratings must match or exceed system working pressure. Most CNC hydraulic circuits operate at 7–21 MPa; specify coolers with a rated working pressure of at least 25 MPa on the oil-side circuit. The design target for inlet-to-outlet temperature differential (ΔT) is typically 8–12°C, maintaining oil temperature in the 40–50°C optimal operating band.

3. Compliance Standards & Integration Requirements

3.1 Relevant Industry Standards and Certifications

Compliance is non-negotiable for OEM integration into CNC machine tools destined for European, North American, or Japanese markets. When selecting a hydraulic oil cooler for CNC applications, buyers must verify that the product meets required cleanliness, safety, and material compliance standards before integration.

ISO 4406 cleanliness class defines the maximum permissible particle contamination in hydraulic fluid. CNC servo valve systems typically require ISO 4406 Class 16/14/11 or cleaner. The hydraulic oil cooler must not introduce additional contamination — specify coolers with internal surfaces finished to Ra ≤ 1.6 μm and tested for particulate cleanliness before shipment.

CE Marking is mandatory for coolers integrated into machinery sold in the EU under the Machinery Directive 2006/42/EC. Confirm that the supplier holds CE declarations covering both the pressure equipment (PED 2014/68/EU) and electromagnetic compatibility aspects of any integrated fan motor or control module.

RoHS compliance applies to any electronic control components within the cooler assembly, including thermostats, solenoid valves, and temperature sensors. Request RoHS 3 (EU 2015/863) compliance documentation explicitly.

Align cooler specifications with the CNC machine builder’s OEM hydraulic specification sheet, which typically defines approved fluid types, maximum return-line pressure, port sizes, and thermal performance acceptance criteria for first article inspection (FAI). These requirements help ensure the selected hydraulic oil cooler can operate reliably within the complete CNC hydraulic system.

3.2 Hydraulic System Integration & Installation Considerations

Circuit position: Install the cooler in the return line (bypass circuit) rather than the pressure line to minimize thermal cycling stress on the core and avoid subjecting the cooler to full system working pressure. A thermostatically controlled bypass valve allows the cooler to be bypassed during cold startup, protecting seals from cold-oil pressure spikes.

Port specifications: Confirm thread standard compatibility — SAE straight-thread O-ring ports are standard in North American OEM specifications; BSP (BSPP) parallel thread is common in European and Asian machine tool builders. Mismatched fittings are a frequent source of installation errors and warranty disputes.

PLC integration: Modern CNC hydraulic oil coolers should include a PT100 or NTC temperature sensor output compatible with the machine’s Siemens, Fanuc, or Mitsubishi PLC. Configure high-temperature alarms at 58°C and machine shutdown interlocks at 65°C to protect the hydraulic system automatically without operator intervention.

4. OEM Sourcing Strategy & Commercial Evaluation

4.1 Key Criteria for Evaluating Hydraulic Oil Cooler Suppliers

For OEM procurement teams integrating hydraulic oil coolers into CNC machine tool production lines, supplier capability assessment should cover four dimensions:

• Customization depth: Can the supplier modify port locations, core dimensions, fin pitch, or mounting bracket configurations to match your machine’s envelope constraints? Suppliers with in-house tooling and stamping capability offer faster iteration than those relying on third-party fabricators.
• MOQ flexibility: High-mix, low-volume CNC builders need suppliers who can fulfill orders of 20–50 units without cost penalties. Confirm minimum order quantities and whether prototype pricing is available for engineering validation builds.
• Sample and FAI lead time: Target suppliers who can deliver functional prototypes within 15–25 business days and provide full FAI documentation — dimensional reports, pressure test certificates, and thermal performance test data — within 30 days of prototype approval.
• After-sales support: Evaluate whether the supplier provides technical support for installation troubleshooting, replacement core supply, and warranty claim processing in your target market region.

4.2 Total Cost of Ownership vs. Unit Price

Procurement decisions based solely on unit price systematically undervalue the cost of failure. A hydraulic oil cooler that costs 30% less but fails after 18 months generates costs that dwarf the initial savings:

• Unplanned downtime: A single 8-hour CNC machine stoppage in a contract machining environment typically costs $2,000–$8,000 in lost revenue and expediting costs.
• Energy consumption: Undersized or inefficient coolers force the hydraulic system to operate at elevated temperatures, increasing pump leakage and energy consumption by 5–12% continuously.
• Seal and fluid replacement cycles: Every 10°C of excess operating temperature approximately halves hydraulic oil service life, doubling fluid disposal and refill costs annually.

Specify TCO evaluation over a 5-year horizon. A premium hydraulic oil cooler with verified thermal performance, traceable material certifications, and a 2-year warranty typically delivers lower total cost than a commodity alternative purchased on unit price alone.

FAQ

Q1: What flow rate and cooling capacity should I specify for a 15 kW CNC hydraulic power unit?

Apply the formula Q = 15 kW × 860 × (1 − 0.80) = 2,580 kcal/h as your baseline cooling requirement. Add a 25% safety margin, targeting a cooler rated for approximately 3,200 kcal/h. For flow rate, size the cooler to pass the full pump output — typically 20–40 L/min for a 15 kW unit — with less than 0.3 MPa pressure drop at maximum flow.

Q2: Can a standard industrial oil cooler be used as a drop-in replacement for a CNC-specific hydraulic oil cooler?

Not reliably. Standard industrial coolers are not designed to meet the ISO 4406 cleanliness requirements, PLC sensor integration specifications, or OEM port configurations required by CNC machine tool builders. Using a non-specified cooler may void the machine tool manufacturer’s warranty and introduce contamination that damages servo valves.

Q3: What certifications should a hydraulic oil cooler supplier provide for OEM integration into CNC machine tools?

At minimum: CE Declaration of Conformity (PED 2014/68/EU), RoHS 3 compliance certificate, ISO 4406 cleanliness test report, hydrostatic pressure test certificate (typically 1.5× working pressure), and material traceability documentation for core and shell materials. For Japanese market OEM integration, JIS B 8354 compliance documentation may also be required.

Conclusion

A dedicated hydraulic oil cooler is a precision thermal management component — not a commodity line item. The procurement decision requires matching cooling capacity to actual calculated heat load, selecting the correct coolant circuit architecture for the installation environment, and qualifying suppliers against the OEM compliance standards that protect machine tool performance warranties.

Buyers who evaluate total cost of ownership over a 5-year horizon — accounting for energy efficiency, seal and fluid service intervals, and the true cost of unplanned downtime — consistently find that investing in a properly specified, certified hydraulic oil cooler delivers measurable returns in machine uptime, process tolerance stability, and lifecycle maintenance cost reduction. The three pillars of a sound procurement decision remain constant: thermal engineering accuracy, integration compliance, and supplier capability depth.
